Part Number: 31-111-100
Description: AVIONICS KIT
Condition: AR - As Removed
ATP Serial Number: PMH0000274EXT

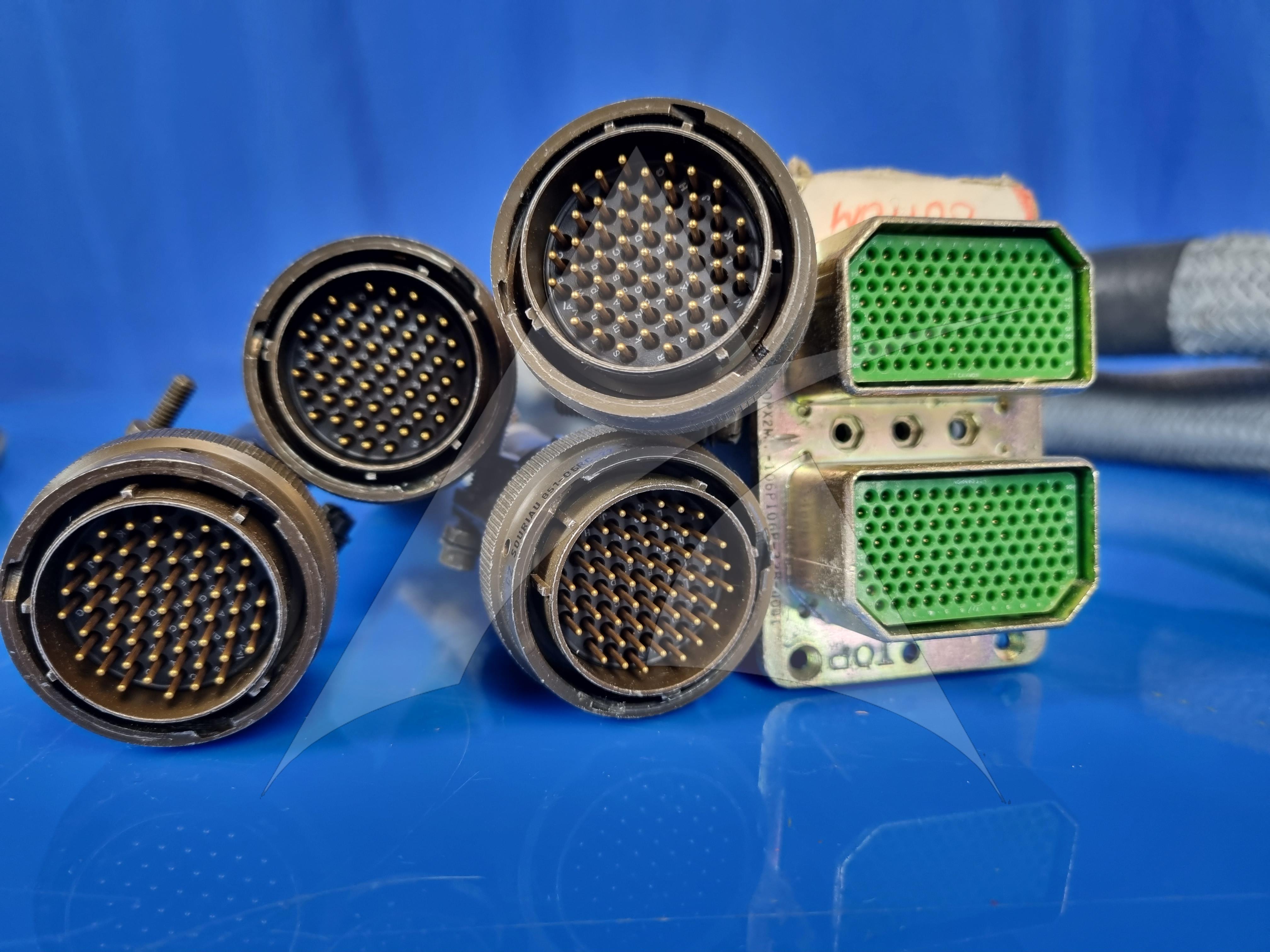

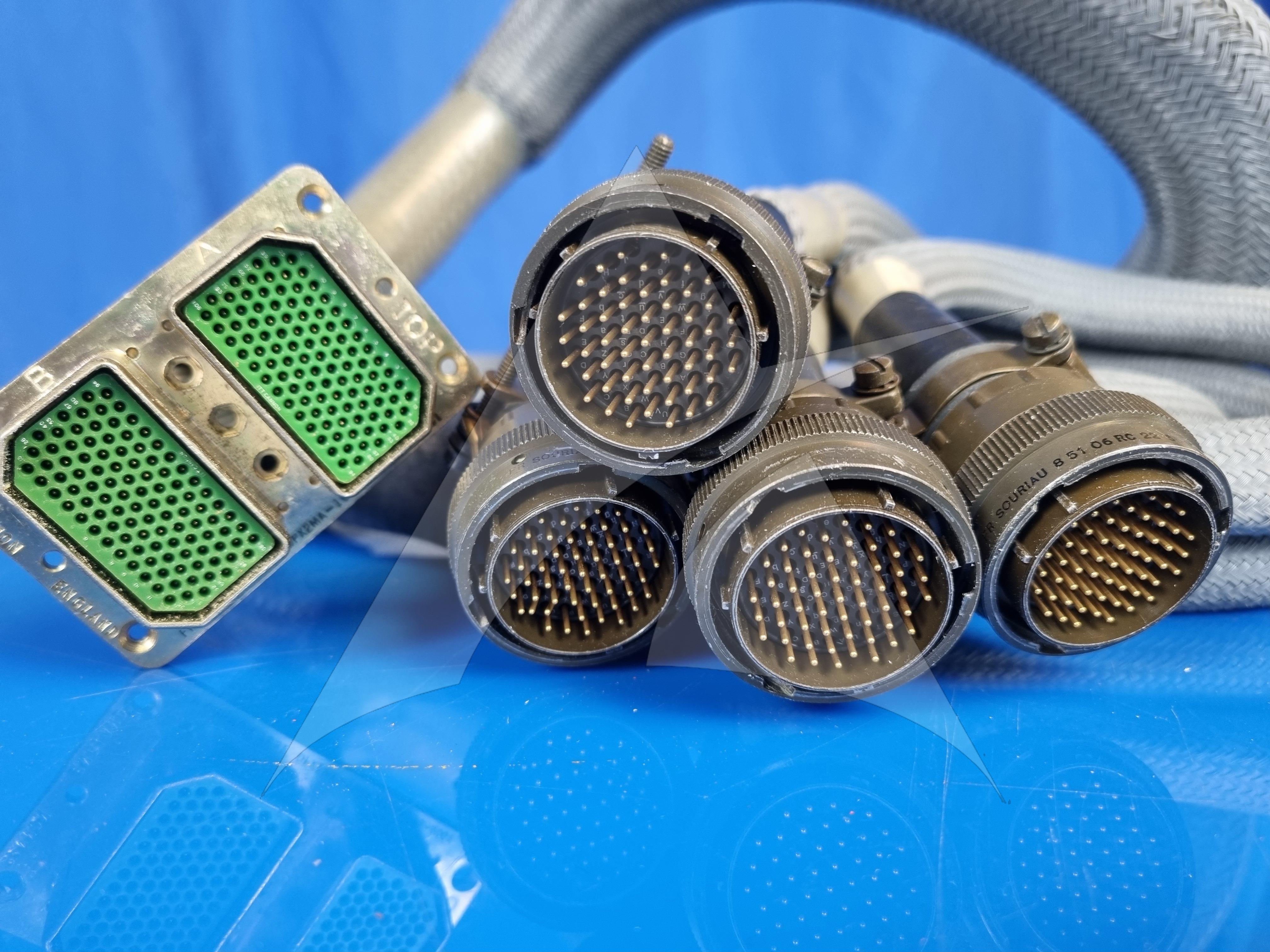

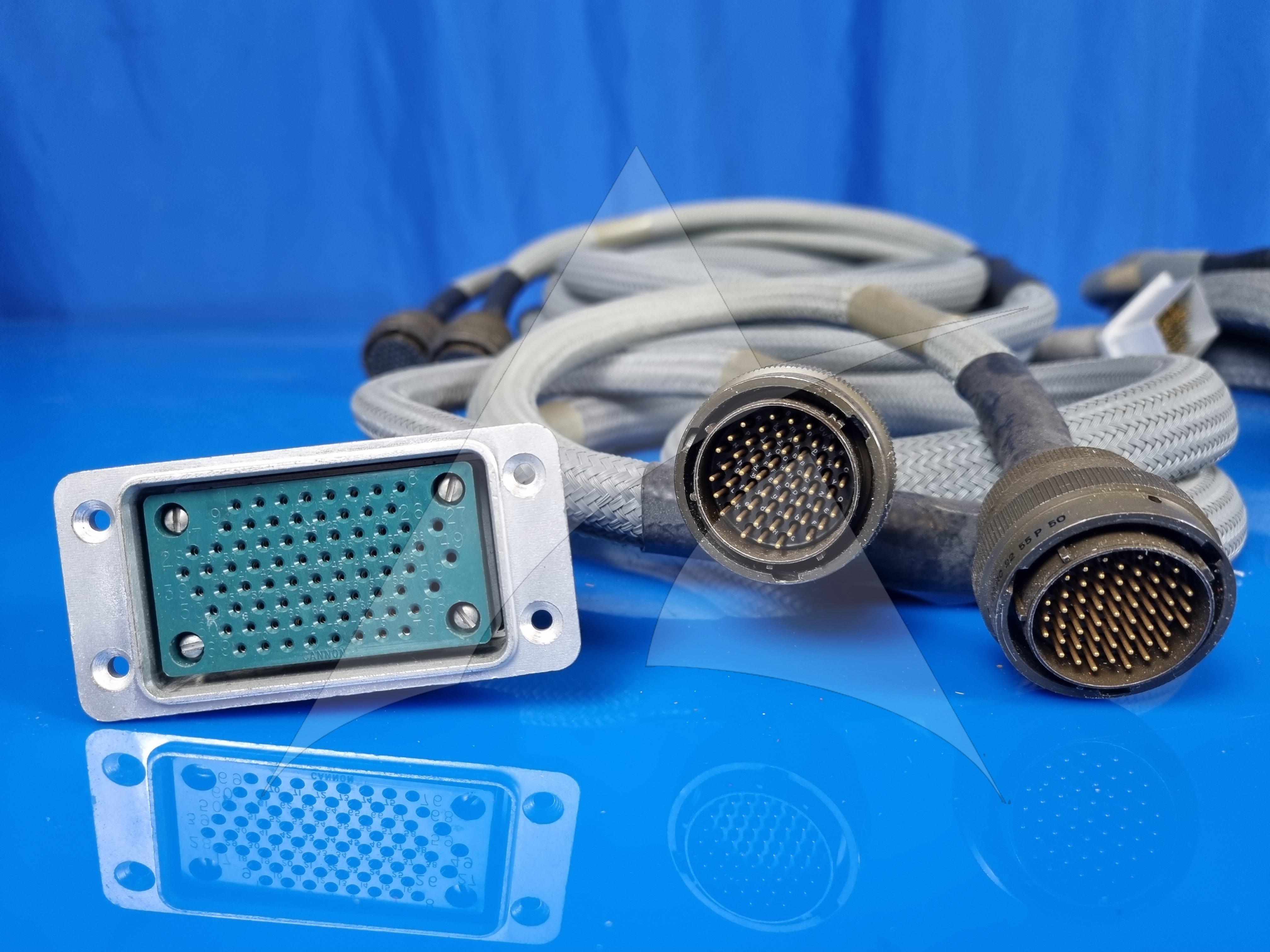

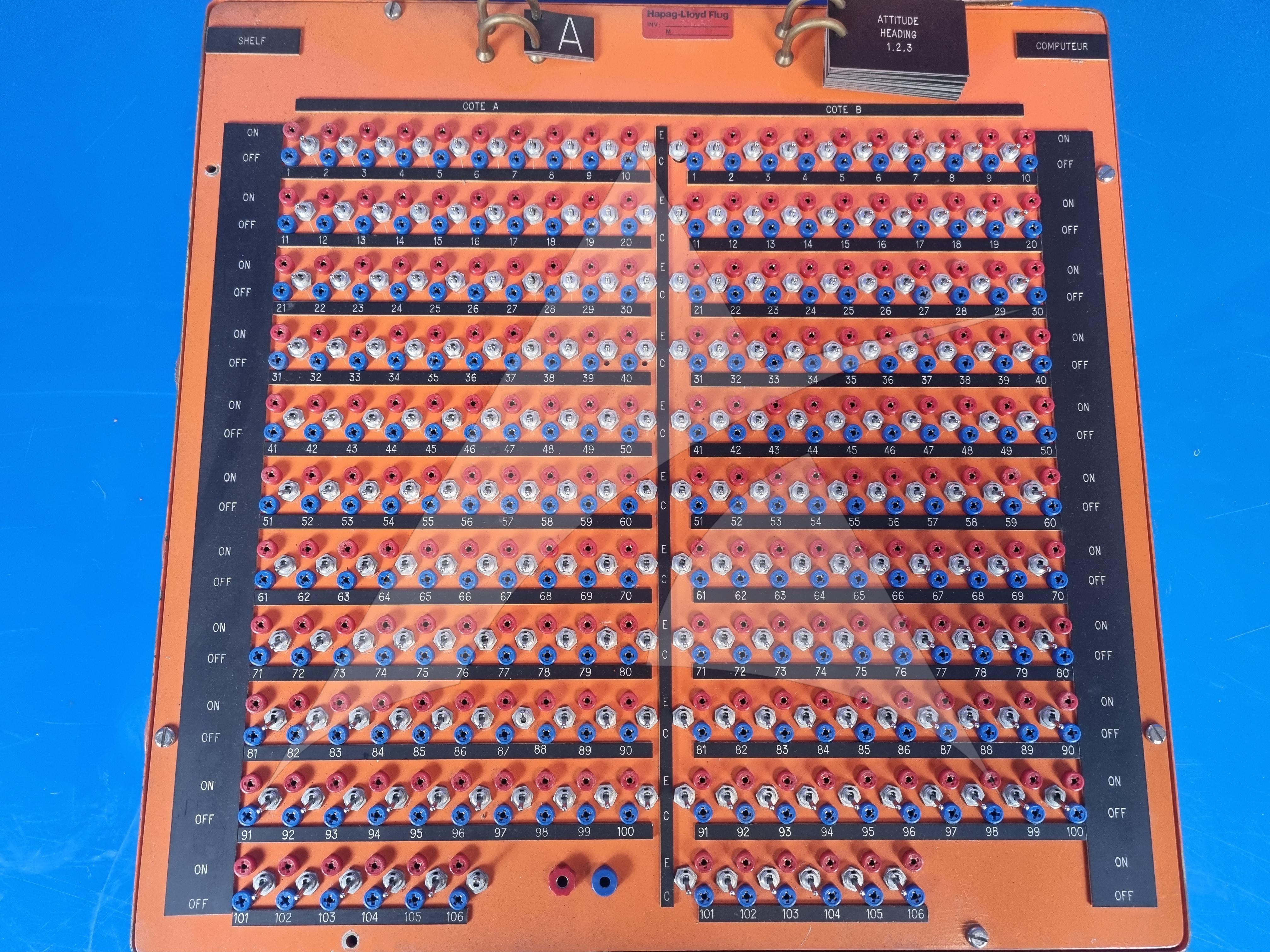

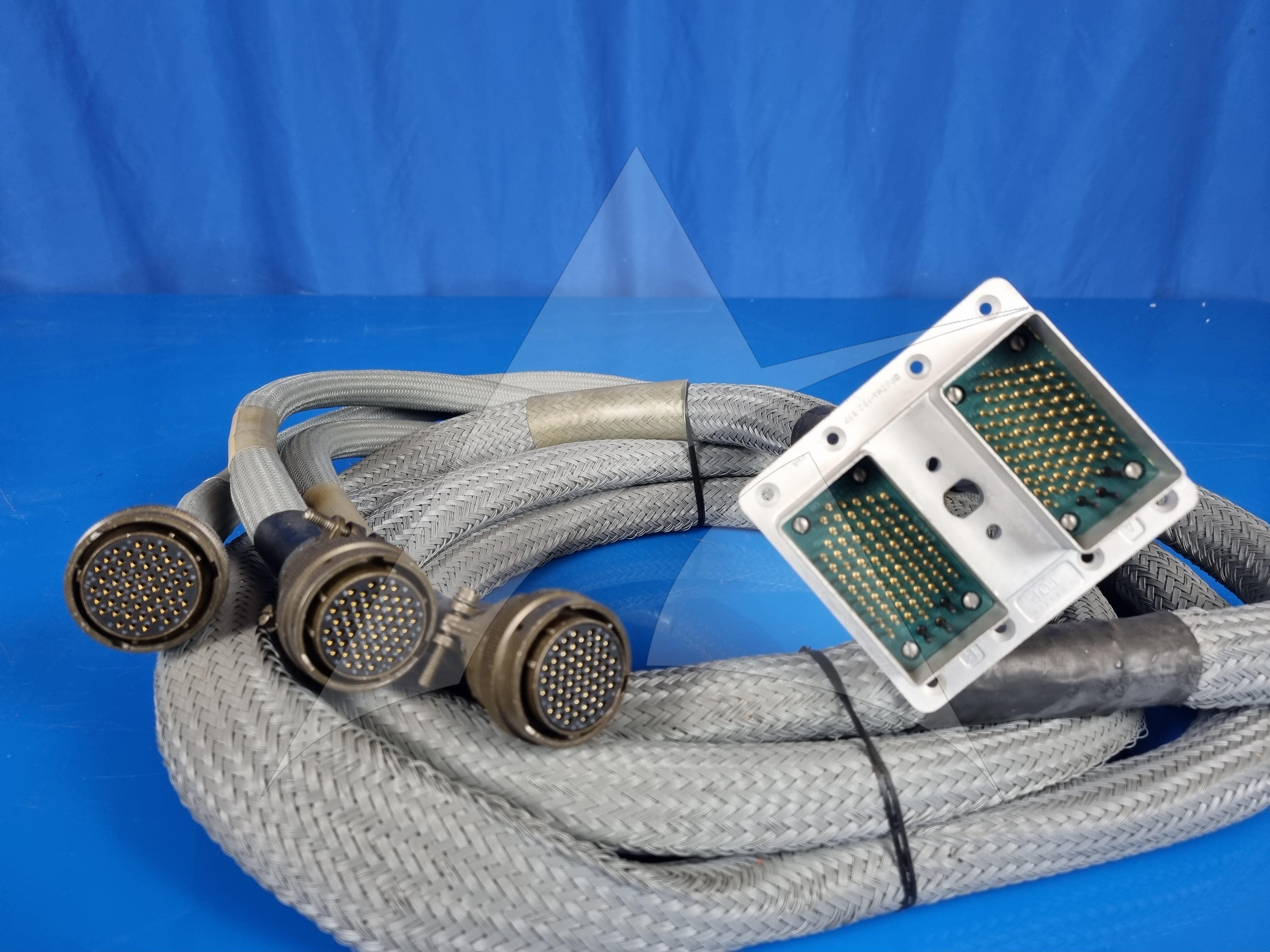

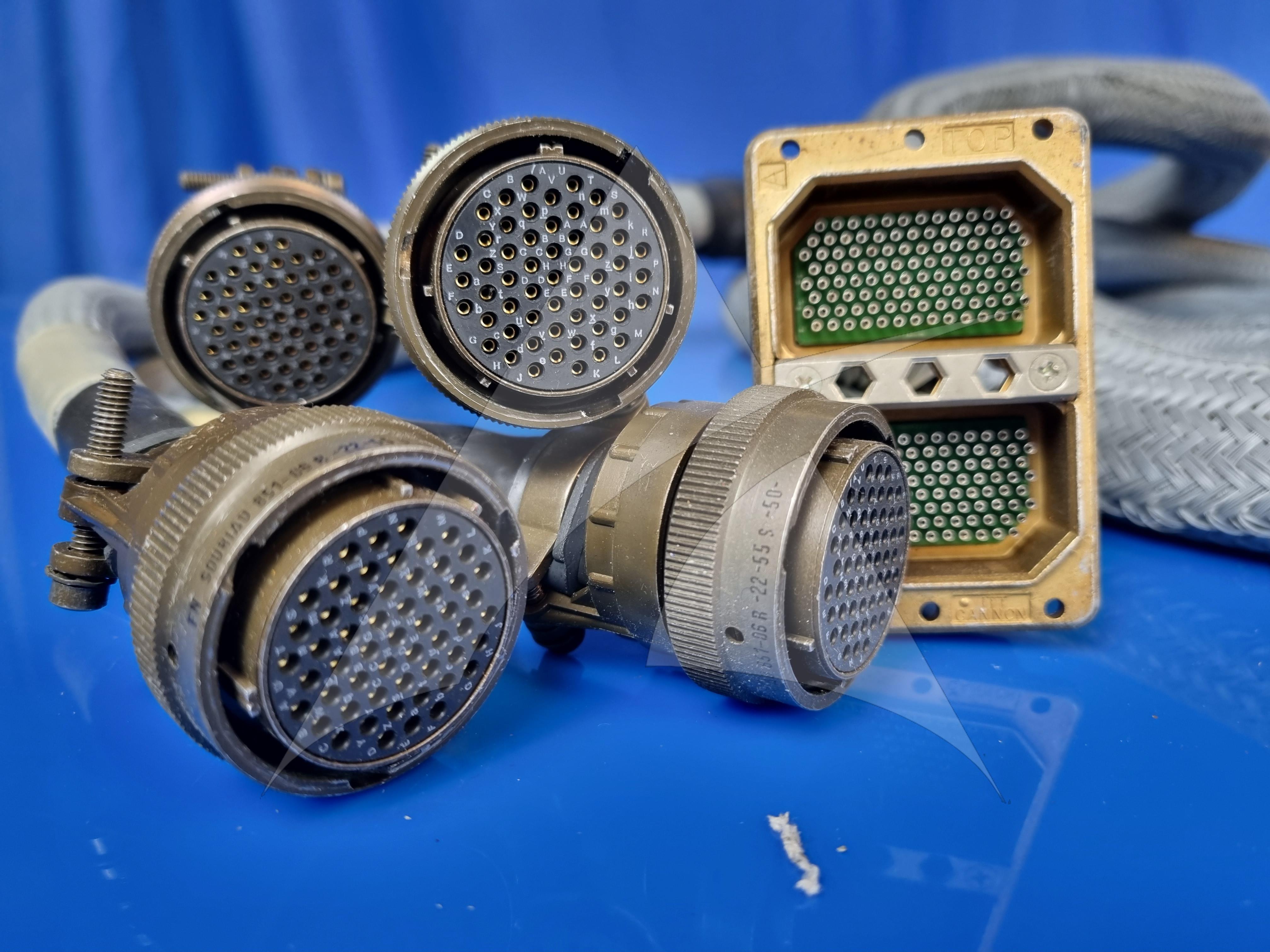

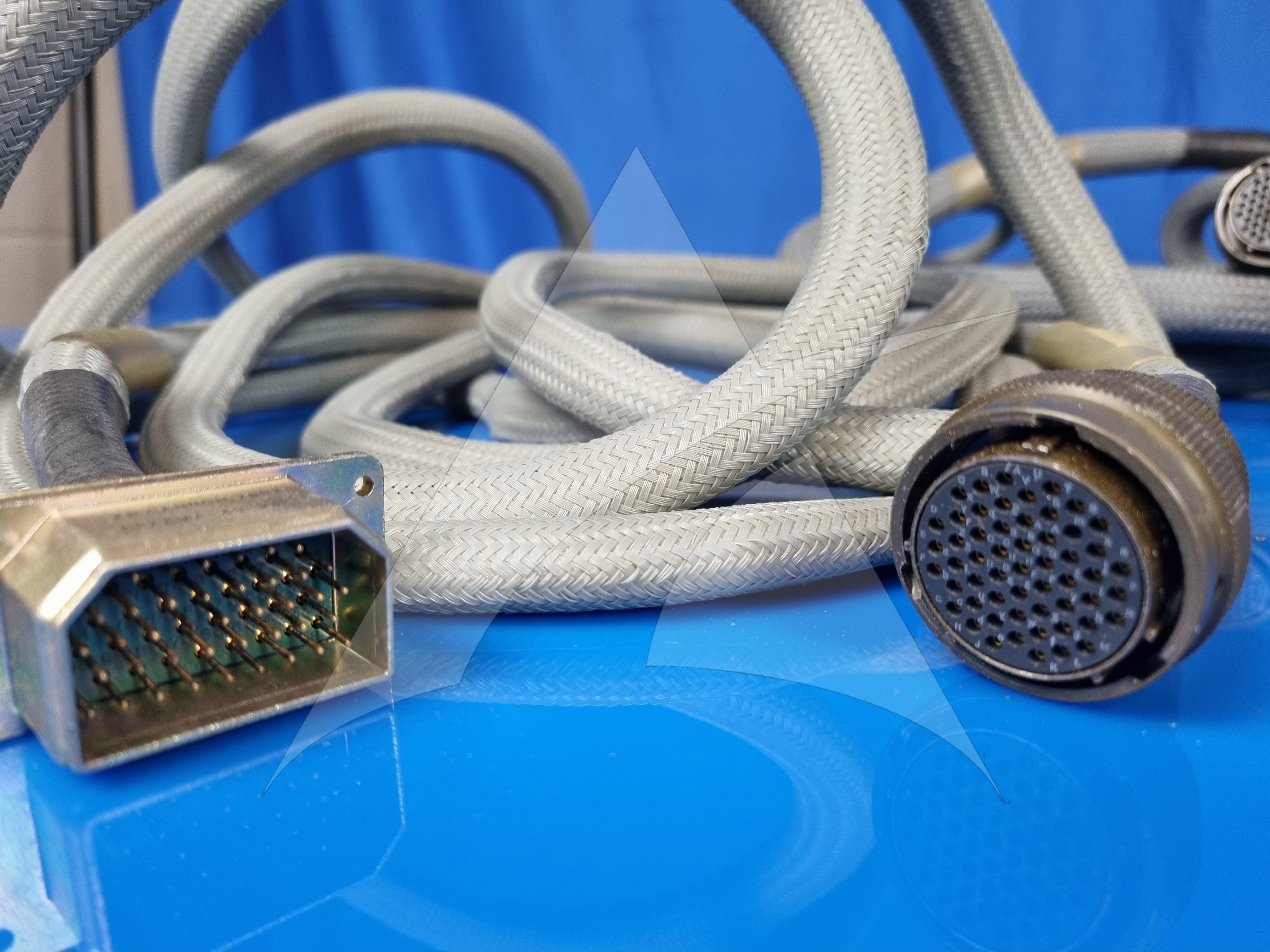

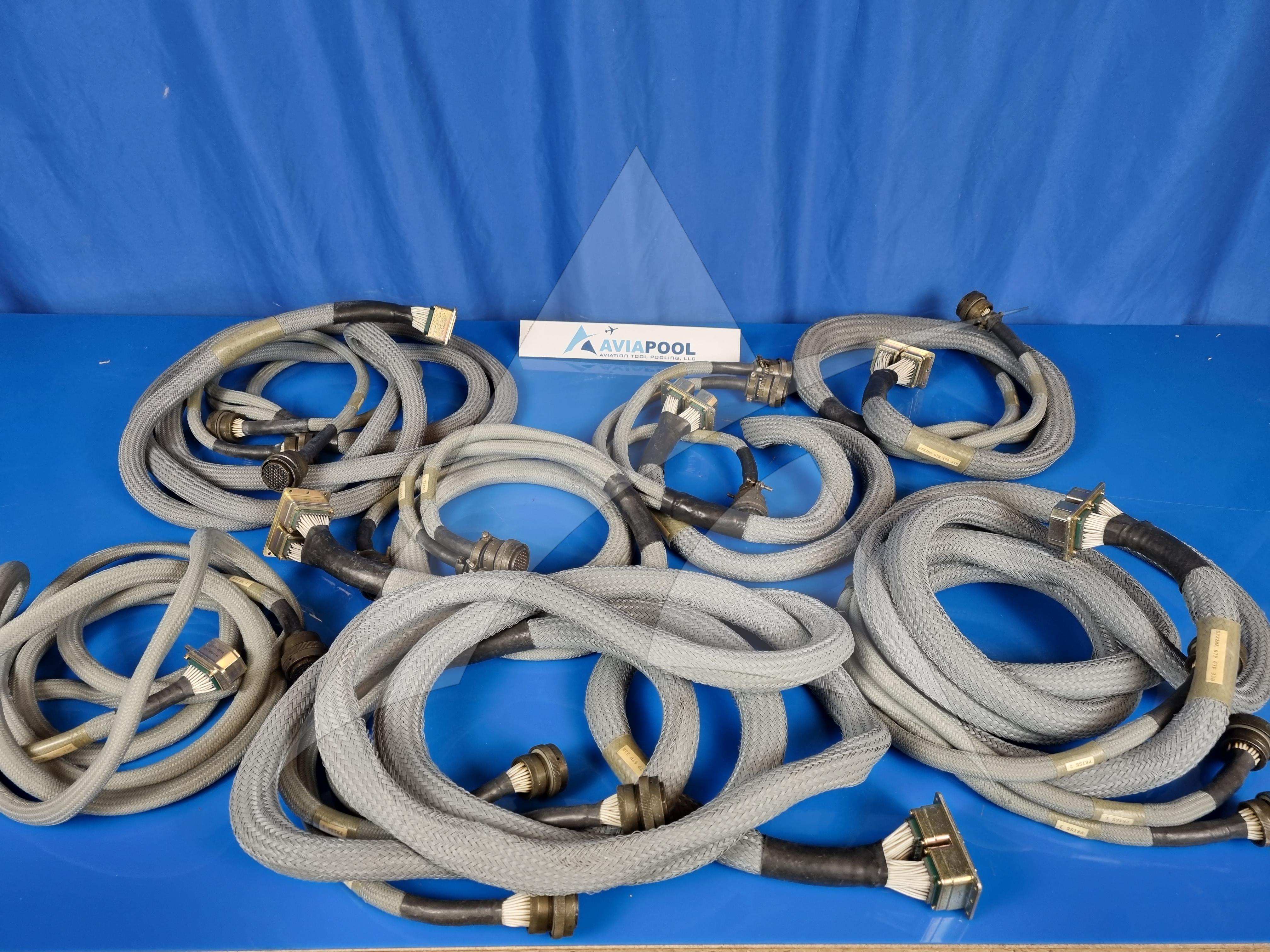

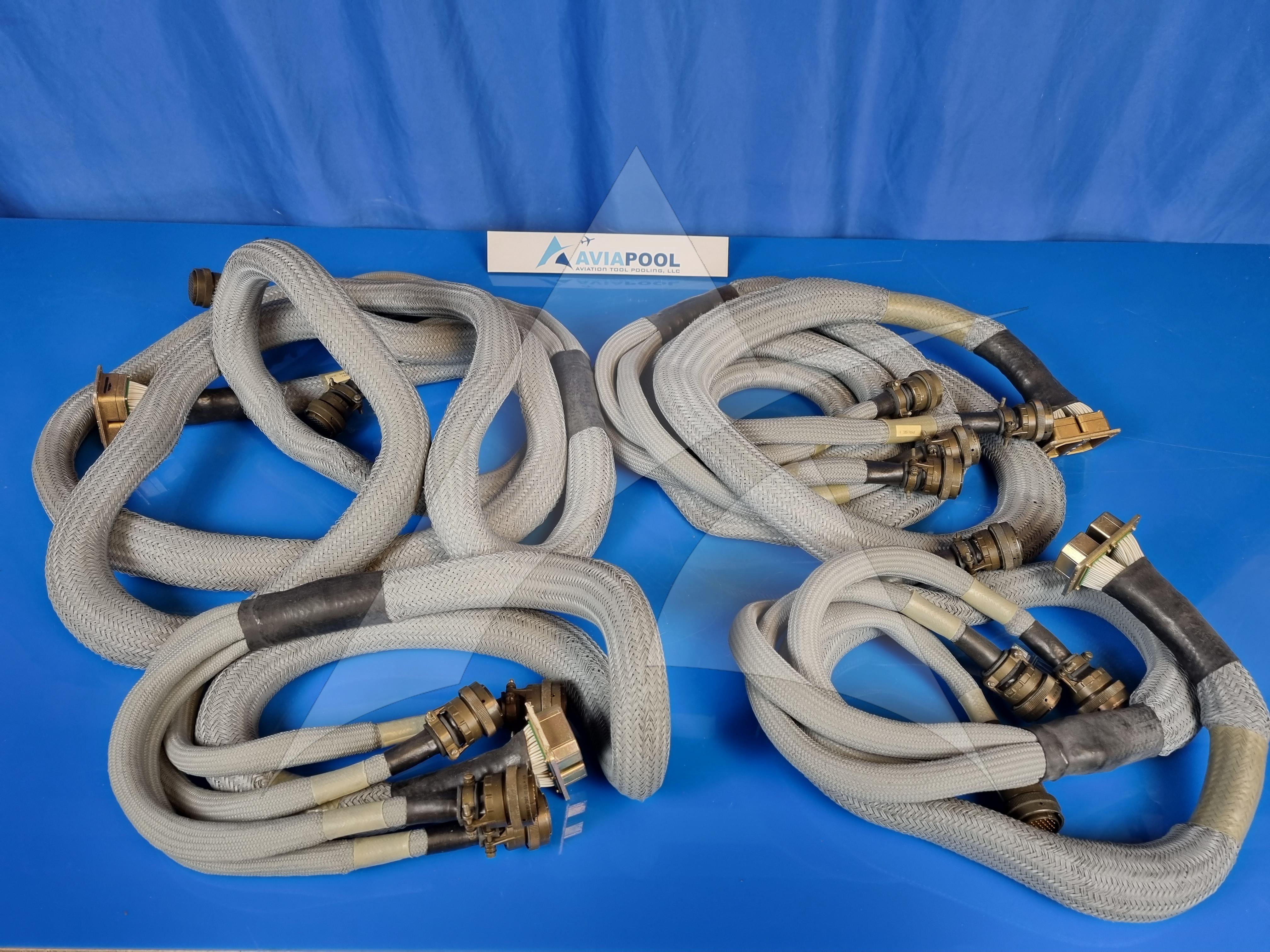

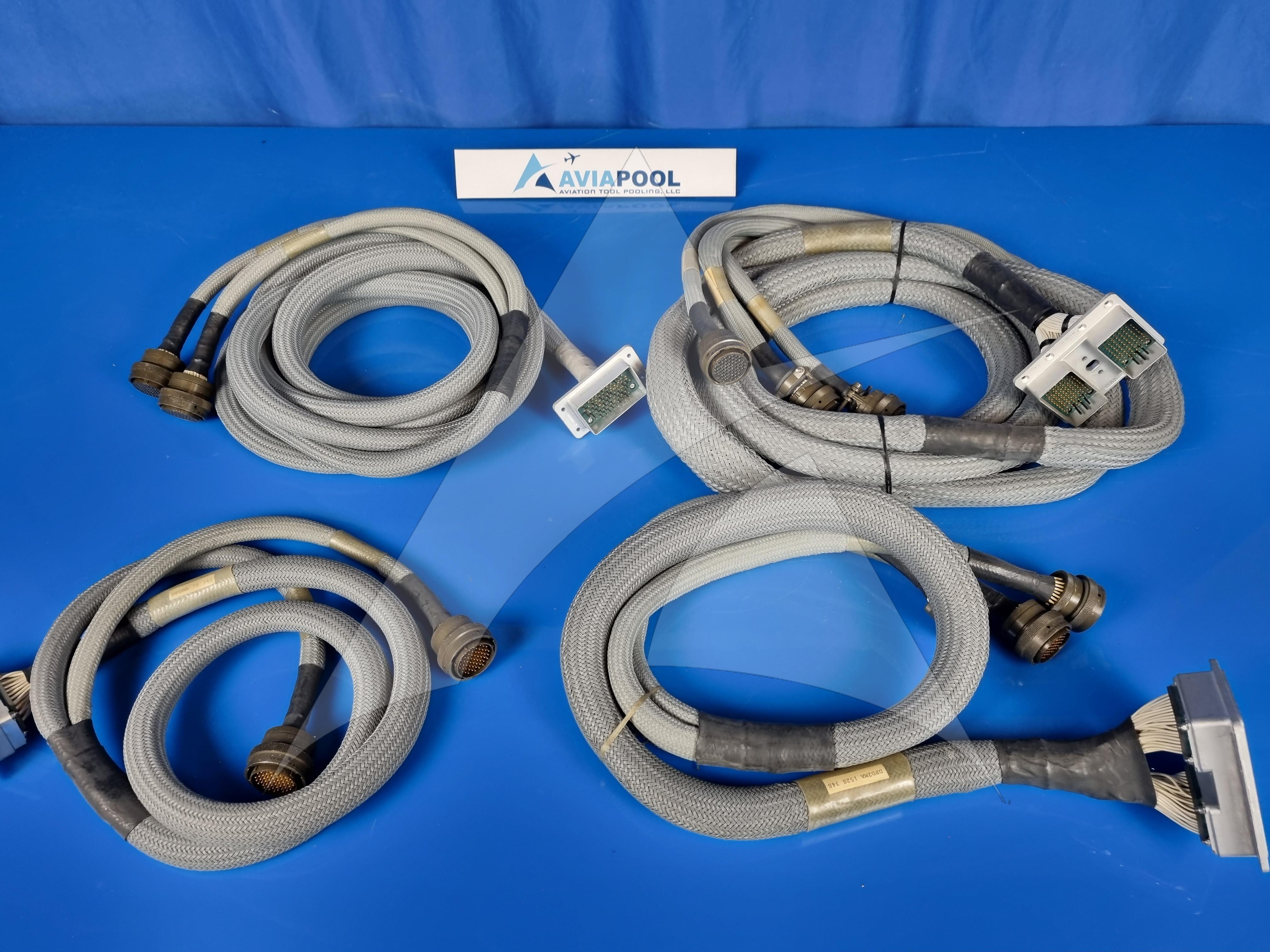

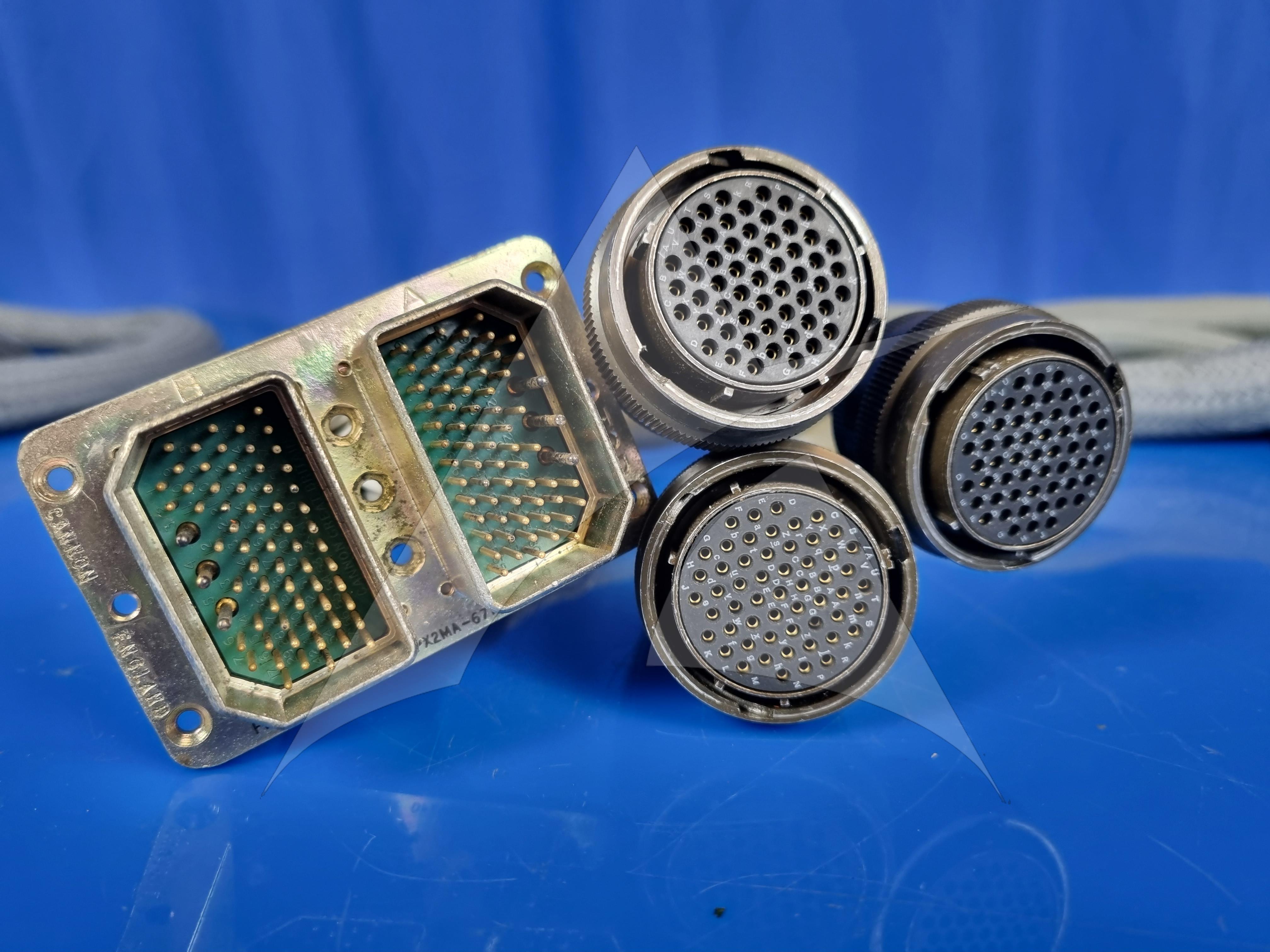

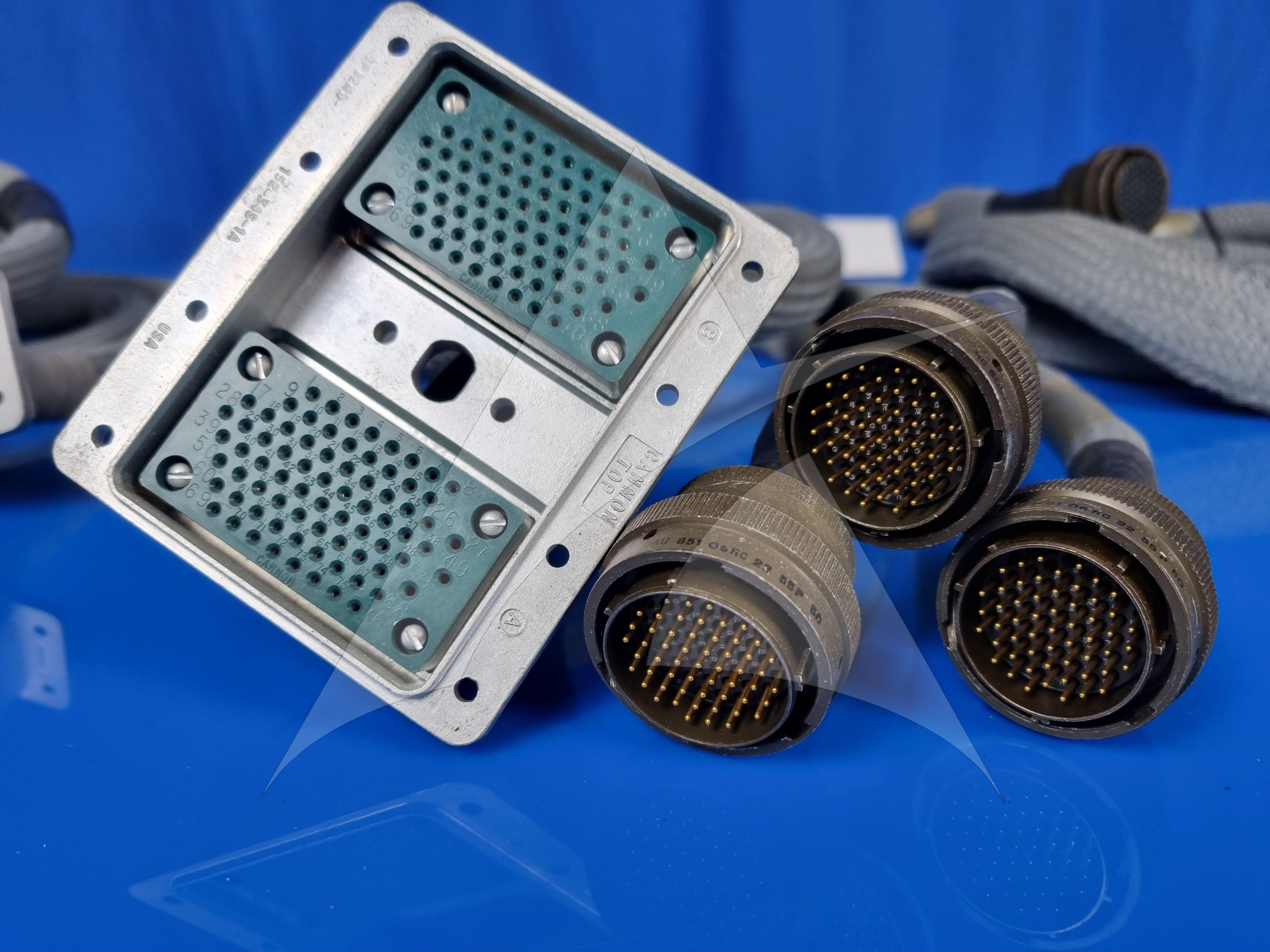

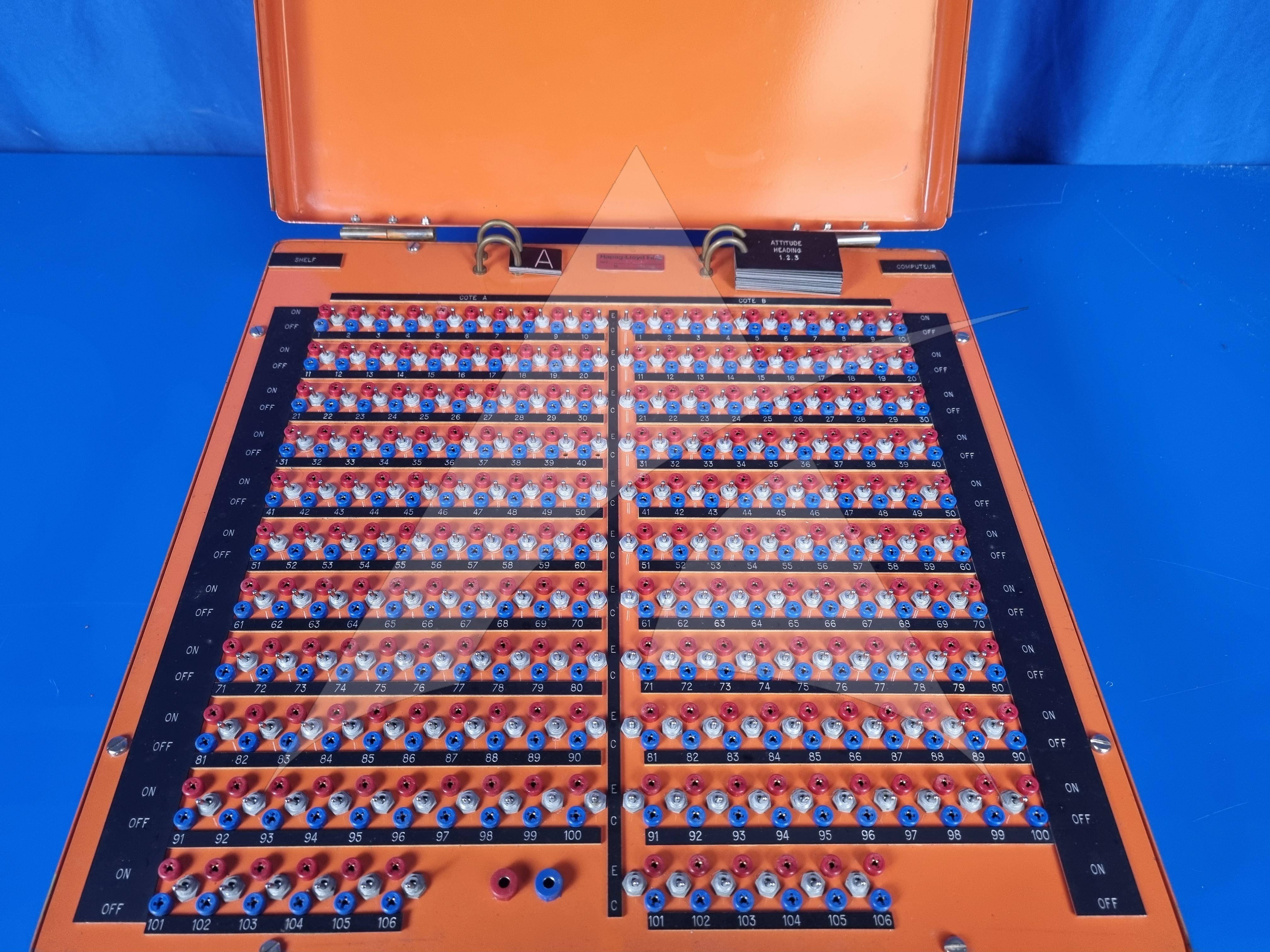

Tech Appraisal: AVIONICS KIT CONSITS ON 5 BOXES; 2 BOXES OF TEST SWITCHES AND 3 BOXES OF CABLES. BOX 1 AND 2 ARE TEST BOXS, TOGGLE SWITCHES OPERATE SMOOTHLY FROM THE ON AND OFF POSITIONS. IDENTIFICATIONS ARE CLEARLY MARKED. ALL ELECTRICAL PINS HAVE BEEN INSPECTED AND ARE IN VERY GOOD CONDITION AND STRAIGHT WITH BLANKING CAPS IN PLACE. BRAIDED SLEEVING IS INTACT, WITH NO CUTS OR FRAYING, AND AROUND ALL THE ELECTRICAL CABLES. HEAT SHRIK IN PLACE AND INTACT WITH NO DEGRADATION. ELECTRICAL PLUG KEY WAYS HAVE NO DANAGE OR DEFORMATION. CONDUIT CLAMPS ARE IN SITU AND HAVE NO DAMAGE. ALL CABLES HAVE PART NUMBERS MARKED ON THEM. BOX 3 CONSISTS OF: - DPX2MA 67P 33B (X2) - DPX2MA 675 678 34B (X2) - DPX2MA 57P 57P 34B - DPX2MA 575 575 34B DPXMA 40 33P BOX 4 CONSISTS OF: - DPDMA 76 345 - DPD2MA 1525 345 - DPDMA 76 33P - DPD2MA 152P 33P BOX 5 CONSISTS OF: - DPX2MA 1065 1065 34B (X2) - DPX2MA 106P 106P 34B (X2)
